In industrial machinery, a spring rarely gets a second chance. It cycles millions of times, holds load for years, and often works in heat, coolant, vibration, or contamination that would retire a lighter component in months. When an industrial spring drifts out of tolerance or loses load, it does not just fail quietly. It takes throughput, uptime, and sometimes a whole production line with it. That is why specifying springs for machinery and automation is an engineering decision, not a catalog lookup.
Industrial springs face three demands at once that consumer or general-purpose parts rarely combine: high cycle counts that punish fatigue, sustained or repeated loads that expose dimensional instability, and environments that attack the material directly. At James Spring & Wire Company, we engineer industrial springs, including heavy duty compression springs, to hold their performance across all three. This guide works through the failure modes that matter in machinery and automation, then the design responses that prevent them, using representative cases engineers and procurement teams will recognize.
The Three Failure Modes That Define Industrial Spring Design
Most industrial spring problems trace back to one of three root causes. Designing against each up front is what separates a spring that survives the equipment’s service life from one that becomes a recurring maintenance line item.
Fatigue under cyclical load. Automation equipment can cycle a spring tens of millions of times. Fatigue failure is driven by stress range, so a spring that passes a static load test can still crack in service if its operating stress is too high for the cycle count. The design responses are lowering operating stress through wire diameter and coil geometry, selecting a fatigue-resistant material, and shot peening to induce compressive surface stress that resists crack initiation.
Load loss and dimensional instability. Springs held under sustained load, or run hot, can take a permanent set and lose free length and force over time. In an automation mechanism that depends on repeatable force, that drift shows up as inconsistent clamping, timing, or return. Preventing it comes down to material selection for the temperature, proper stress-relief and pre-setting during manufacturing, and keeping operating stress within the material’s relaxation limits.
Environmental attack. Heat, coolant, washdown, and airborne contamination degrade both the material and any protective finish. The wrong choice here corrodes or embrittles a spring long before fatigue would have. Material and finish have to be matched to the actual environment, a decision we cover in depth in our guide to surface treatments and spring performance.
Case One: A Heavy-Duty Compression Spring in Press Tooling

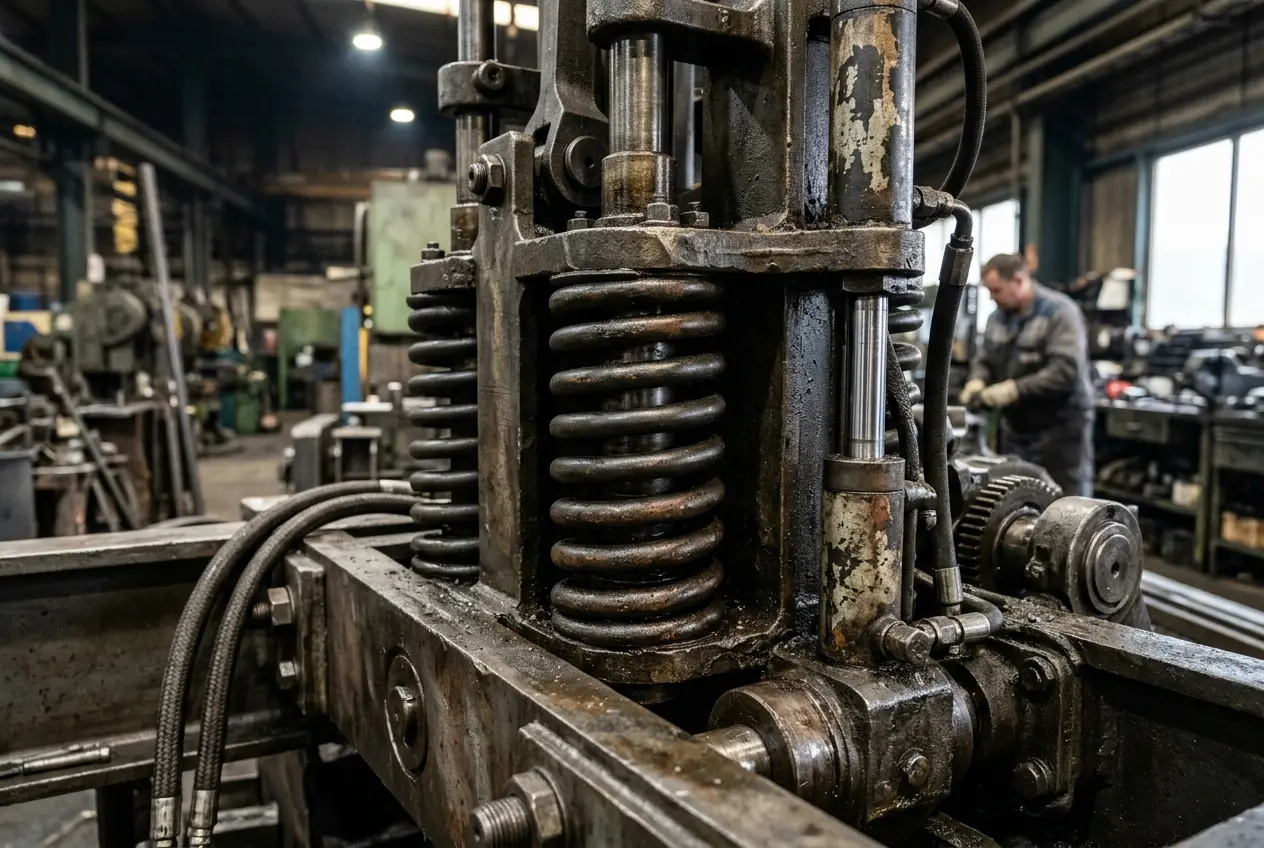

Consider a compression spring in stamping or press tooling, the classic industrial duty cycle. It sees high load, rapid cycling, and heat from the process, and any loss of force changes how the tool performs. This is the domain of die springs and heavy-duty compression springs, where rectangular wire is often used to pack more load into a tight envelope than round wire allows.
The design priority is fatigue life at high load in a fixed pocket. The engineering response is a material rated for the stress and temperature, geometry tuned to keep operating stress below the fatigue threshold for the required cycle count, and a finish or peening treatment suited to the tooling environment. The outcome that matters to the OEM is predictable tool life and consistent part quality across the full production run.
Case Two: A Return Spring is An Automation Mechanism
In automated equipment, springs return actuators, index mechanisms, tension belts and webs, and hold safety interlocks. The defining requirement is repeatability. The mechanism relies on the same force at the same position every cycle, so load loss is the enemy even more than outright breakage.
The design priority is consistent force over a very high cycle count. The engineering response is conservative operating stress, a material chosen for minimal relaxation, and manufacturing controls, including pre-setting, that stabilize free length before the part ever ships. The outcome is an automation cell that holds its timing and force without drift, which protects cycle-time and scrap targets. For the broader logic of matching spring type and characteristics to a machine’s requirements, our guide on choosing the right springs for your machinery is a useful companion.
Case Three: A Spring in a Hot or Contaminated Environment
Springs near motors, hydraulics, ovens, or process heat face elevated temperatures that accelerate relaxation and can change the material’s behavior entirely. Add coolant or contamination and corrosion enters the picture. Here material selection leads, with higher-temperature alloys and corrosion-resistant options carrying a premium that a warranty claim or a line stoppage would dwarf. The engineering goal is to keep both load and dimensions stable across the temperature and exposure the spring will actually see, not the nominal condition on the drawing.
What Procurement Should Specify, Not Just Accept
For procurement teams, the practical lesson is that an industrial spring is not a commodity defined by wire diameter and free length alone. The specification that protects uptime includes the operating environment and temperature, the required cycle count, the acceptable load loss over life, and the consequence of failure in the machine. Sharing those with a spring partner at design time, rather than a bare geometry, is what lets the spring be engineered for the duty rather than merely built to a print. It is also the difference between a supplier and an engineering partner.
Engineer the Spring for the Duty Cycle
Industrial machinery and automation expose springs to the harshest combination of cyclical load, sustained force, and environment in any sector. The equipment builders who avoid recurring field failures treat fatigue life, dimensional stability, and environmental resistance as design inputs from the start. That is the standard we build industrial compression springs to, and it is why our customers specify performance and duty cycle rather than just a part number.
If you are designing machinery or an automation cell and need springs engineered for the load, cycle count, and environment they will actually see, talk with our engineering team about the application. For the full range of industrial equipment we support, see our industrial spring capabilities.
