Compression Springs
Precision Custom Compression Springs, Manufactured In-House Since 1960
Engineering Innovation Since 1960
Custom Compression Springs, Built to Spec
We offer custom compression springs made from a range of materials. Our in-house CNC spring coilers manufacture precision compression springs with close-tolerance spring loads, making them ideal for a multitude of critical applications.
From medical devices to mining and drilling equipment, a range of industries rely on these versatile springs. Different spring configurations — including hourglass (concave), barrel (convex), and conical compression springs — can all be manufactured on our CNC coilers.
Wire Diameter
0.005″ – 0.250″
Across all materials
End Grinding OD
0.060″ – 3.000″
Min wire: 0.018″
Equipment
CNC Coilers & Grinders
In-house tooling
Certification
ISO 9001:2015
PPAP · SPC
Spring Configurations
Four geometries, all coiled on the same CNC equipment

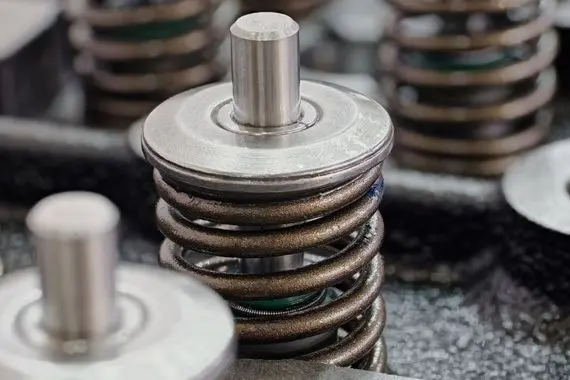

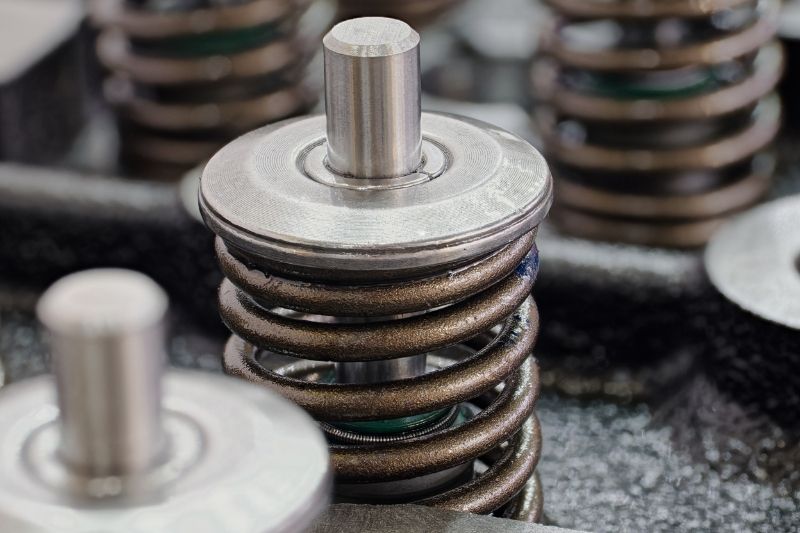

Cylindrical
Hourglass (Concave)

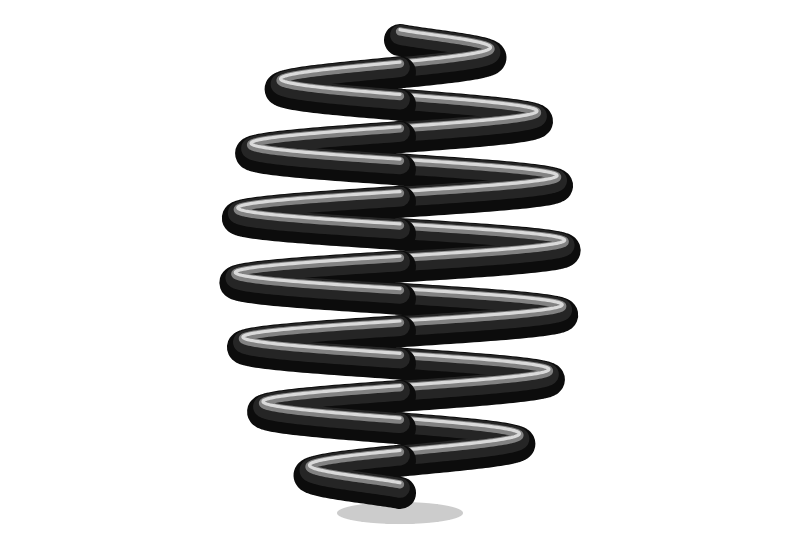

Barrel (Convex)

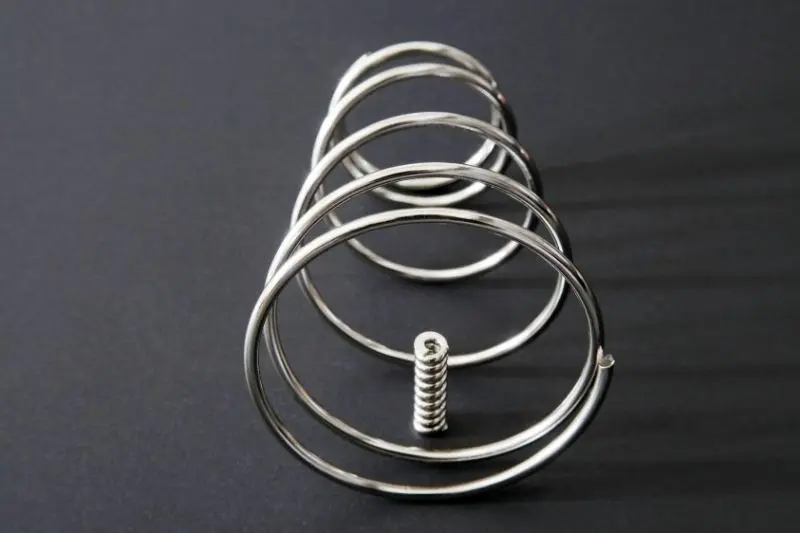

Conical
Materials We Work With
The Right Material for Every Environment
We manufacture using a wide range of materials selected based on environmental conditions, load requirements, corrosion resistance, and product lifecycle expectations.
- Music Wire
- Oil Tempered
- Chrome Vanadium
- Phosphor Bronze
- Inconel
- Hastelloy
- Elgiloy
- Titanium
- Hard Drawn Wire
- Chrome Silicon
- Stainless Steel (17-7, 302, 304, 316, 316L)
- Beryllium Copper
- Monel
- MP35N
- Nitinol
Engineering Support
Custom Spring Design Services
Our in-house engineering and design department can provide design assistance and verify existing spring designs. Prototype development services are also offered prior to actual production — so you can validate fit and function before you commit.
Supporting OEMs Across Diverse Industries
Industries Served
Our precision spring and wire form solutions are trusted in demanding applications across numerous industries.
Secondary & Finishing Services
Surface Treatment
- Anodizing
- Bead Blasting
- Citric & Nitric Passivation
- Cleaning – Conventional & Ultrasonic
- Color Coding
- Deburr – Vibratory & Tumble
- Electro Polish
- Laser Etching
- Powder Coating
- Rust Preventative
- Shot Peening
- Stress Relieving & Heat Treating
Plating
- Black Oxide
- Cadmium
- Chrome
- Gold
- Nickel
- Phosphate
- Tin
- Zinc
Quality Control
- Material & Part Certifications
- Production Part Approval Process (PPAP)
- Statistical Process Control (SPC)
- ISO 9001:2015 Registered
Frequently Asked Questions
Compression springs are used in a wide range of applications, including automotive, aerospace, medical devices, and industrial equipment. They provide resistance to a compressive force and are commonly used to store energy or absorb shock.
Compression springs can be manufactured from Beryllium Copper, Chrome Silicon, Chrome Vanadium, Elgiloy, Hard Drawn Wire, Hastelloy, Inconel, Monel, MP35N, Music Wire, Nitinol, Oil Tempered, Phosphor Bronze, Stainless Steel (17-7 SS, 304 SS, 316 SS, & 316L SS), and Titanium. The material used will depend on the specific application and the required performance characteristics of the spring.
There are several factors that should be considered when designing a compression spring, including the spring’s intended use, the desired spring rate, the material used, the amount of force required, and the available space for the spring.
The spring rate is the amount of force required to compress the spring by a certain amount. It is typically measured in pounds per inch (lbs/in) or newtons per millimeter (N/mm). Learn more about calculating spring rate.
The maximum load will depend on several factors, including the material used, the wire diameter, and the spring’s dimensions. It is important to carefully consider the maximum load when designing a compression spring to ensure that it will function properly and safely.
The manufacturing process typically involves coiling a wire around a mandrel, heat treating the spring to improve its strength and durability, and then grinding the ends to ensure a flat and even surface. Learn more about how compression springs are manufactured.
Yes, we can manufacture custom springs to meet specific requirements for load capacity, spring rate, and other performance characteristics. Our custom springs are manufactured using specialized equipment and techniques.
The lead time for manufacturing compression springs will depend on the complexity of the spring, the quantity required, and other factors. We can manufacture most compression springs within 4–6 weeks.
Our Quality Management System is certified by ISO 9001:2015. We have the ability to provide specialized reports upon request, including First Article, PPAP inspections, material certificates, and Certificates of Conformance.
Need a custom compression spring?
Send us a drawing or a written spec — our engineers will respond with a manufacturable design and a quote, typically within two business days.
