Many people use terms like “helical coil spring” or “helical springs” and “coil springs” interchangeably, but are they different? The short answer is no. There is no functional difference between a helical coil spring, helical springs or coil springs—these terms refer to the same type of spring. All describe a spring, a mechanical device made by winding wire in a helical shape (like a corkscrew) around a cylinder form and is designed to store potential energy until released.
Confusion and Misconceptions in Usage
Why is the terminology often used interchangeably? This confusion stems in part from terminology preferences across different engineering disciplines and product applications rather than actual technical distinctions. In other words, it’s a matter of context. Engineers and technical publications sometimes prefer “helical spring” as it precisely describes the geometric form of the spring, while “coil spring” is the more common general term used in everyday language or in industrial and commercial applications.
Adding to the misconception is that this particular spring design comes in different functional varieties. Compression, extension, and torsion springs are all helical or coil springs that differ only in their end configurations and intended loading direction. When industry professionals make apparent distinctions between these terms, they’re typically referring to specific design variations or applications rather than fundamentally different spring types, as the helical geometry remains the consistent defining characteristic.
Visual vs. Technical: How Defining Characteristics Influence Terminology of Spring Types
From another perspective, differentiation in terminology is often related to the coiled appearance of the spring rather than the technical nature of its geometry. Helical or coiled springs are, in general, categorized by their defining characteristics, specifically their resistance to a load, be it compressive, extended, or twisted. For instance, as the name suggests, a compression spring is a helical mechanical device engineered to resist compressive forces. Meaning, it is designed to store its potential energy when compressed and release it when the load is removed. Its coils are closely wound with flat or ground ends that provide stable contact surfaces during compression. A properly designed compression spring exhibits proportional resistance throughout its compression range until reaching its elastic limit, beyond which permanent deformation occurs, compromising its ability to return to its original shape.
Compression springs are used in applications in a wide range of industries like automotive, aerospace, medical devices, and consumer electronics. In automotive systems, they absorb shock and maintain ride height in suspensions. In medical devices, they enable precise, repeatable motion in instruments like syringes and valve systems. Electronics rely on them for battery contacts and switches, while industrial machinery uses them for load management, vibration damping, and maintaining consistent pressure in assemblies. Their versatility, simplicity, and efficiency make them one of the most commonly used spring types across engineering fields.

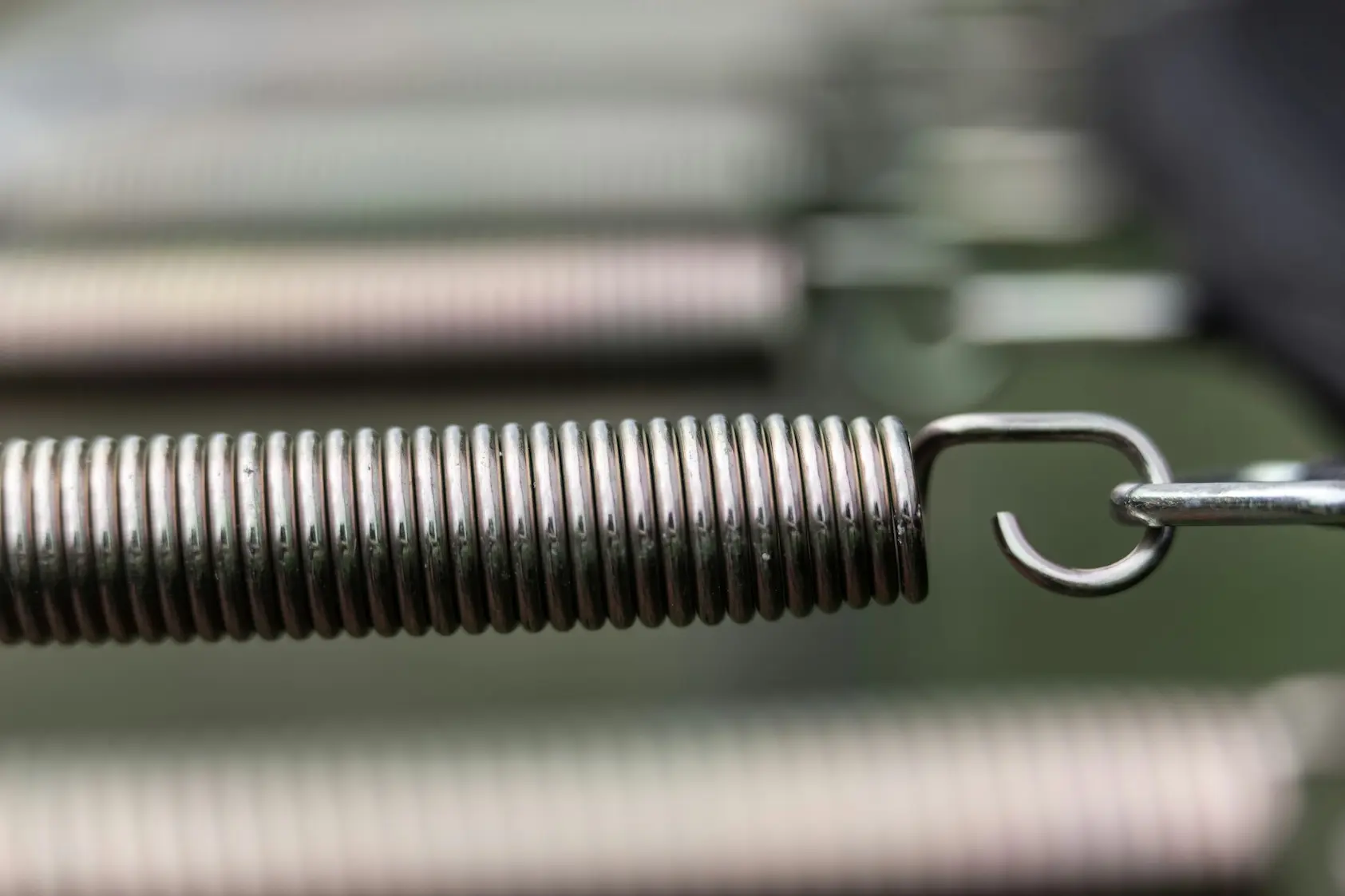

Like a compression spring, an extension spring is a type of helical spring. However, unlike a compression spring, it is designed to absorb and store energy by resisting a pulling force. An extension spring stretches when a load is applied and returns to its original length when the load is removed. Its defining characteristics include tightly wound coils with little to no initial gap between them, and hooks, loops, or other attachment mechanisms on either end to connect components under tension. The spring operates with an initial tension, meaning it requires a certain amount of force to begin extending, which helps control movement and maintain stability in assemblies. Extension springs are commonly used in applications like trampolines, garage doors, and levers, where controlled resistance to pulling forces is essential.
Extension springs are widely used across various industries in applications where controlled resistance to pulling forces is needed. They’re found in throttle linkages, carburetors, and trunk mechanisms in automobiles. They help control panels and latches in aerospace applications. Industrial machinery uses them in levers, counterbalances, and actuators. Consumer products like trampolines, screen doors, and toys also rely on them for tension control. Some types of medical devices incorporate extension springs in handles or return mechanisms where precise tension and repeatability are required.
Another type of helical or coiled shaped spring is the torsion spring. It works by storing and releasing rotational energy when twisted, rather than compressed or extended. Its defining characteristic is that it exerts torque or rotary force around its axis when its ends are rotated in opposite directions. Typically made from round wire coiled into a helix, torsion springs have straight or shaped arms extending from the ends, which attach to other components to apply or receive rotational force. The spring’s torque increases with the angle of twist, and it’s designed to work best within a specific range of rotation.
Torsion springs are commonly found in applications where controlled angular movement is required. In the automotive industry they’re found in vehicle suspension systems, trunk lids, and throttle return mechanisms. They are essential components for actuating levers, switches, and valve controls in industrial equipment. Common consumer products like clothespins, clipboards, mouse traps, garage doors and hinges are made with torsion springs, as are medical devices, surgical tools and precision mechanisms that require rotational motion.
Form Prevails Over Geometry
Though the terms “coil spring” and “helical spring” are often used interchangeably in engineering contexts, compression, extension, and torsion springs are commonly referred to in everyday usage as coil springs rather than helical springs. While “helical spring” is the accurate engineering term, the term “coil spring” has become more widespread because, if anything, it is more visually descriptive of the particular component. Over time, “coil spring” has become a catch-all phrase for any spring with a spiral form, regardless of its specific function (compression, extension, or torsion). What differences there are in terminology then are related more to form vs. geometry. The use of “coil” emphasizes form, while “helical” emphasizes the geometry—hence the informal term often prevails in general usage.
